TPS Setting Tool by Nihilo Concepts

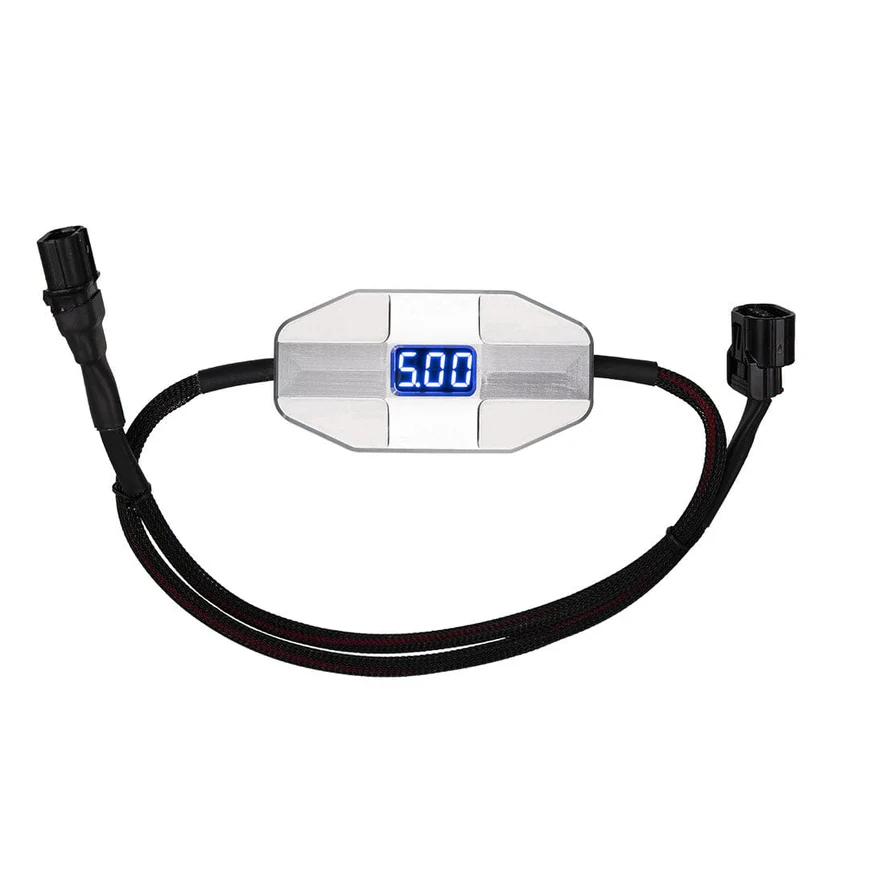

Nihilo Concepts TPS Setting Tool

The Nihilo Concepts TPS Setting Tool is a must-have for all KTM, Husqvarna, and GasGas dirt bikes with a throttle position sensor. Nihilo Concepts joined forces with sister company WMR Racing Development to design a one-of-a-kind tool that has an unmatched experience when setting your TPS. All the new motocross and offroad fuel injected models come with a throttle position sensor on the throttle body and it is very important to have it set to a specific value. The TPS is an important sensor that helps the engine control how much fuel to inject, and must be set to a specific number for optimal performance. Made out of billet aluminum for durability, with heavy duty wiring, proprietary circuitry, and OEM connectors.

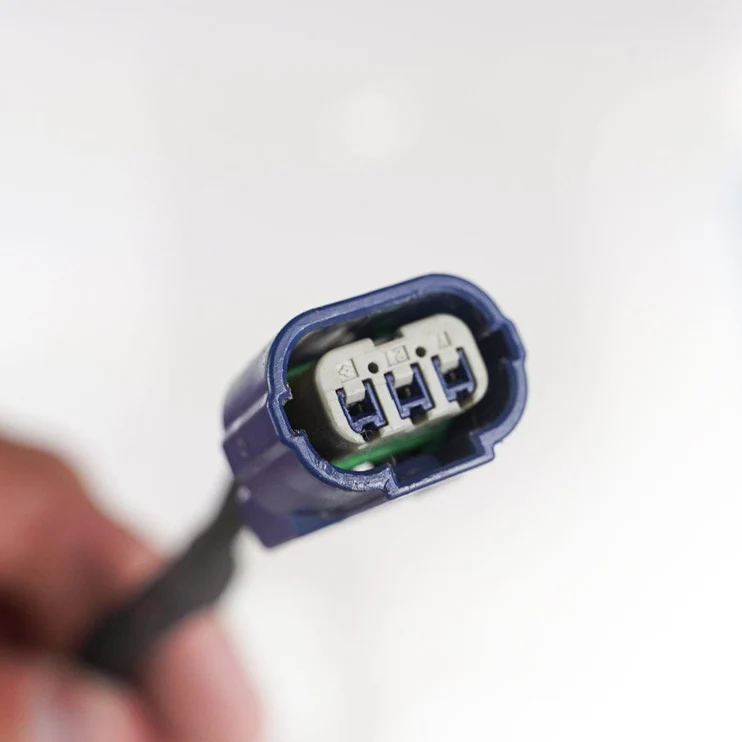

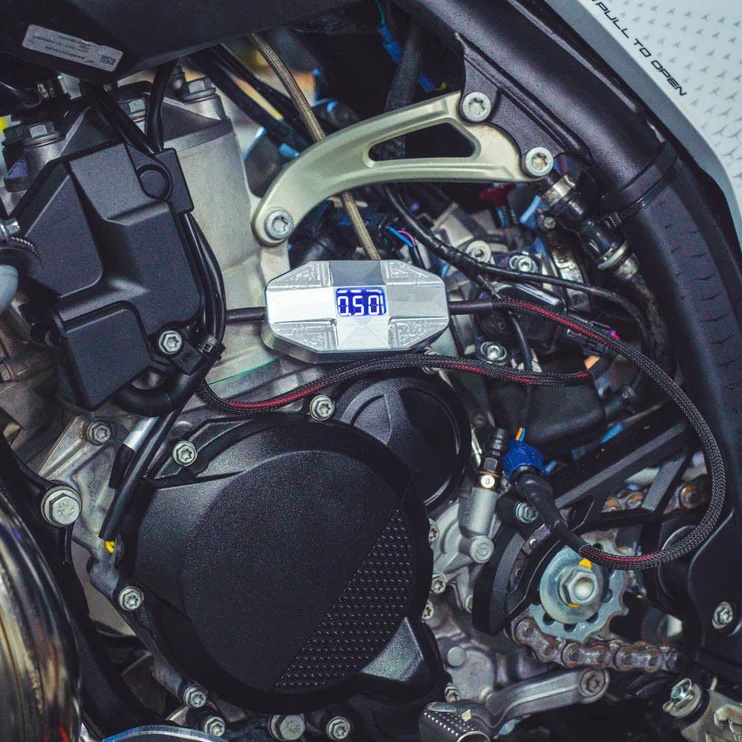

The Nihilo Concepts TPS Setting Tool is a plug-and-play device, without the necessity to match colors or pinouts. It simply connects in series with OEM connectors in between the Throttle Position Sensor and the wire harness connector, and the exact 5-volt reference signal source from the ECU powers it. Also, the bike can be started with the tool connected for live data viewing during final idle fine tuning.

• Compatible with all KTM, Husqvarna, and GasGas dirt bikes that have a throttle position sensor matching the connector.

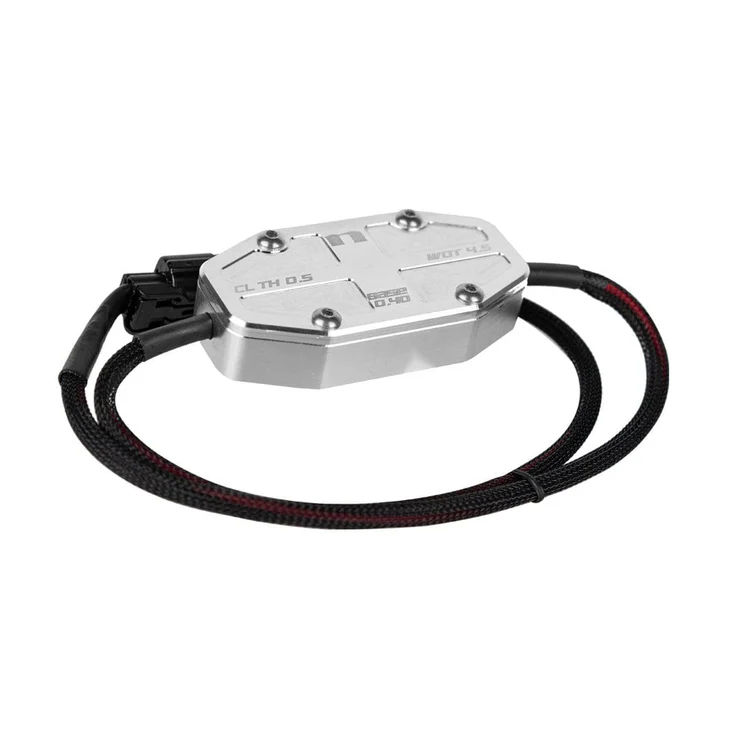

• Made of billet aluminum, heavy-duty wiring, and proprietary circuitry.
• Very easy to use and can be dialed in just a few minutes.
• Improves the performance of your dirt bike ensuring that the TPS is set to the correct value.
• Useful when running different maps on your dirt bike.

Fits:
`16-25 KTM 250-450 SX-F/XC-F
`17-25 KTM 250-500 EXC-F/XCF-W/XW-F
`23-25 KTM 125-300 SX/XC
`24-25 KTM 150-300 XC-W/EXC
`16-25 Husqvarna FC/FX 250-450
`17-25 Husqvarna FE 250-501
`23-25 Husqvarna TC/TX 125-300
`24-25 Husqvarna TE 150-300
`21-25 GasGas MC/EX/EC 250F/350F/450F/500F
`24-25 GasGas MC/EX/EC 125/250/300

Availability: In stock
Ships: Worldwide
