Solid Sub Mount Kit for KTM/HQV/GG by BRP

Solid Sub Mount Kit for KTM/HQV/GG by BRP

The Solid Sub Mount Kit for KTM/HQV/GG by BRP is designed for those of you who already have a Scotts stabilizer and would like to go sub-mounted. Choose the kit option for your specific needs. Designed to mount a Scotts stabilizer below the handlebar using your O.E.M. cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. Sub-mounting a stabilizer offers several benefits over a conventional above bar setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

• Offers an approximately 1″ taller bar position
• Lower bend bars can be used to compensate for additional height.
• Sub-mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.
• Mounts in position 3 or 4 only
  • Bar mounts on kits for `23 KTM SX/SX-F/XC/XC-F, `23 Husqvarna TC/TX/FC/FX, and all `24+ models can be flipped allowing more positions

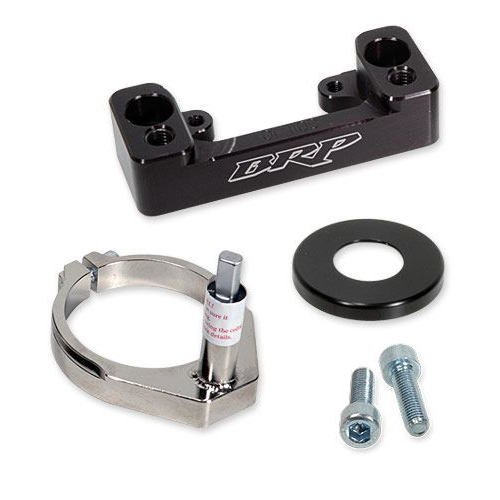

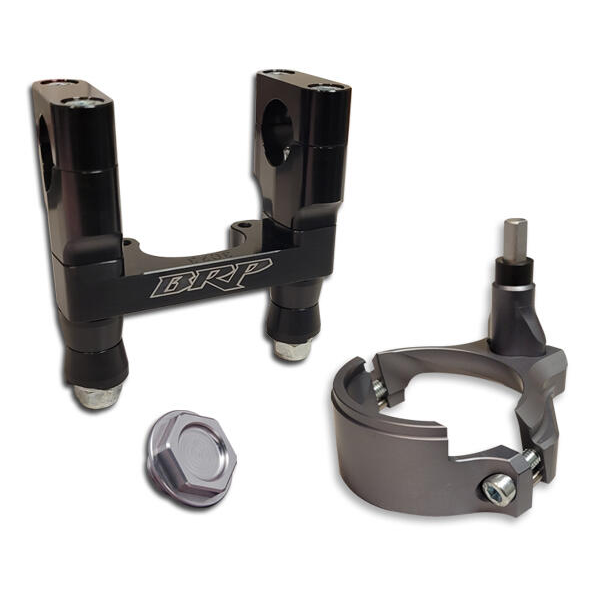

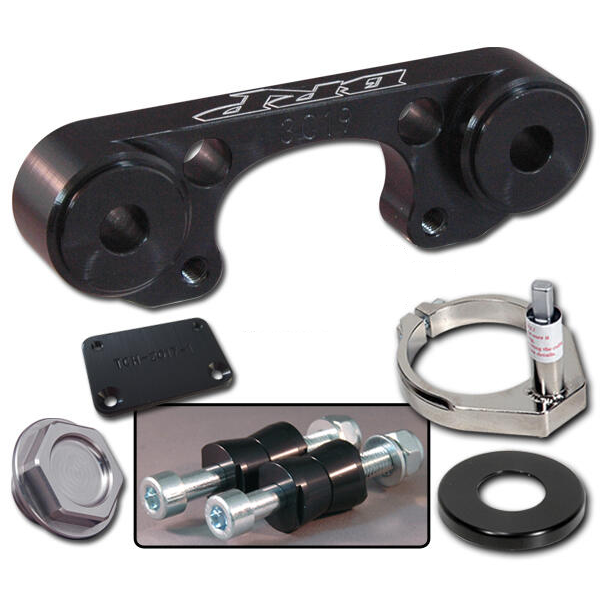

• Includes:
  • Bar mount
  • Frame bracket (tower) – Optional
  • All mounting hardware
  • Instructions

Fits: See Fitment tab above

Please include the year, model and size in the “bike info or other notes” section during check out.

When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted going under the body of the unit. To reverse the link-arm we recommend using a Scotts Link-Arm Puller (sold separately).

Note: We recommend using a Cleanspeed Throttle Cable Guide to ensure proper cable routing.

Availability: In stock
Ships: Worldwide
