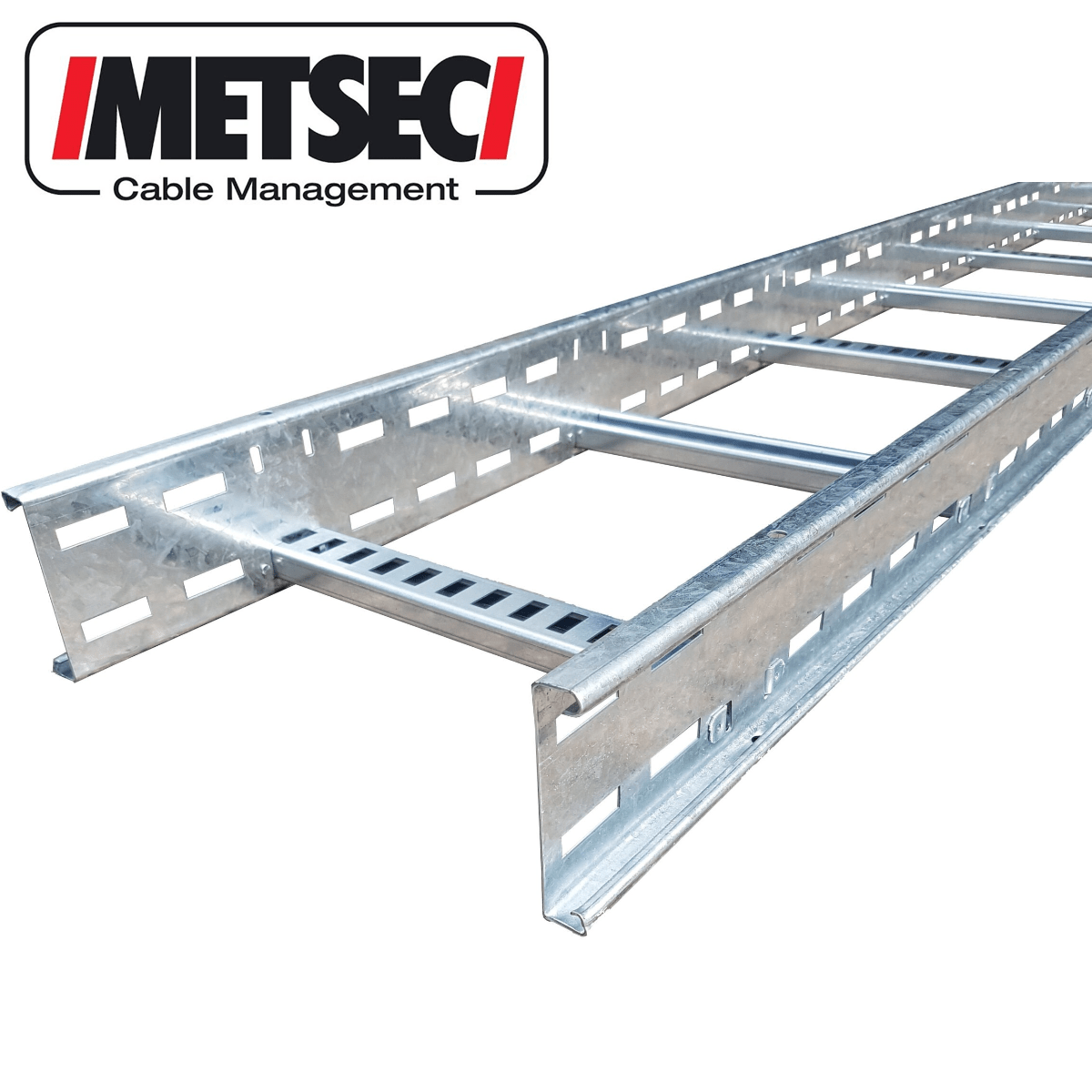

Metsec – 300mm x 100mm Cable Ladder HDG – 3 Meter

Metsec 300mm x 100mm Cable Ladder – Hot Dip Galvanised | 3 Metre

The Metsec 300mm cable ladder is a heavy-duty containment solution designed for high-capacity installations in commercial and industrial environments. This 3-metre ladder tray features a 300mm width and 100mm depth, offering reliable support for heavy cable loads.

Constructed from hot dipped galvanised steel, this unit is compliant with BS-EN-61537:2007, ensuring long-term durability in both internal and external environments.

It includes alternate reversed 41 x 21mm rungs welded at the lowest point, allowing maximum cable clearance and flexible fixing from above or below. The tray is pre-slotted with 11mm x 38mm slots at 60mm centres for fast, consistent connection using standard couplers (not included).

🔧 Technical Specifications:

• Width: 300mm
• Depth: 100mm
• Length: 3 Metres
• Material: Hot Dip Galvanised Steel (HDG)
• Rungs: 41 x 21mm channel – alternate reversed, welded at base
• Slot Size: 11mm x 38mm – spaced at 60mm centres
• Conformance: BS-EN-61537:2007
• Metsec Part Number: LSL100/0300HDG/3
• Couplers: Required (sold separately)

✔ Key Features:

• 300mm wide cable ladder for high-load containment
• HDG finish for use in outdoor, rooftop, and industrial zones
• Slotted and welded for strength, easy installation, and flexibility
• Supports all cable cleats, ties, and bonding methods

🛠 Applications:

• Heavy-duty cable containment systems
• Service risers and plant rooms
• Rooftop infrastructure support
• Data centres and mechanical zones
