FrSky Archer Plus SR8 Gyro Stabilised Receiver

The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.

The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smart matched during the binding process on the radio. With a Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

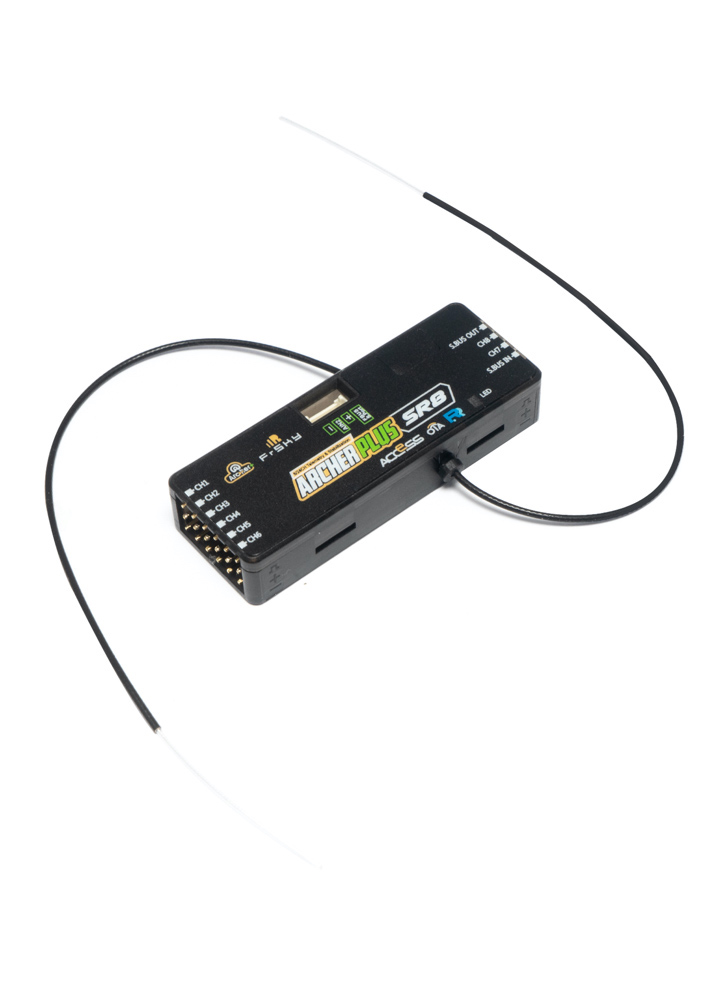

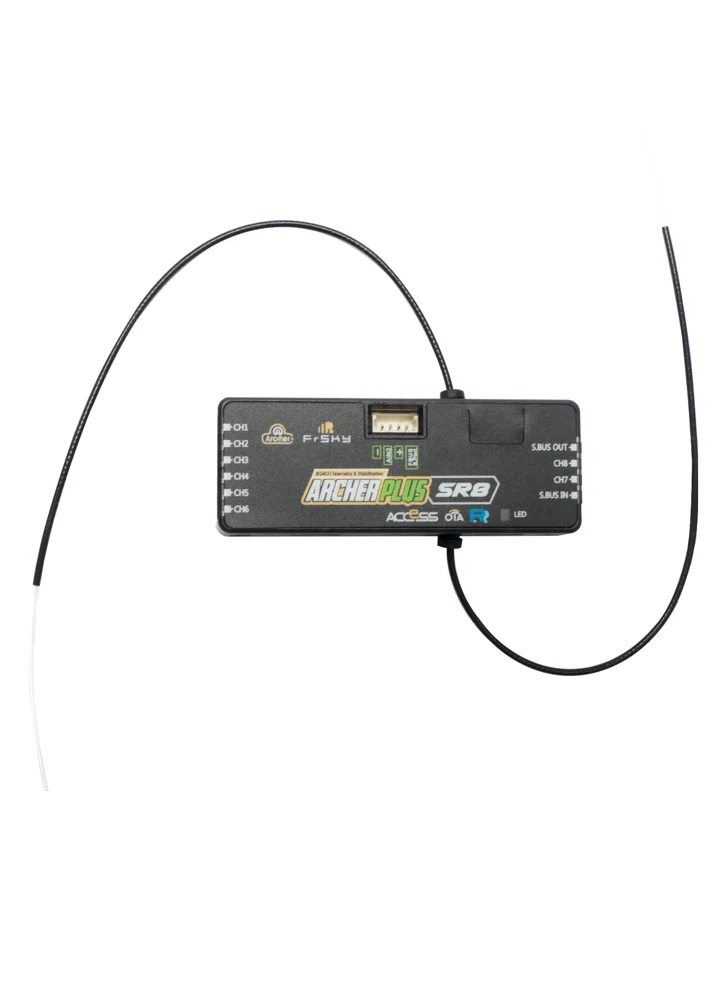

The Plus SR8 receiver from FrSky is designed for use in RC airplanes. It’s works as a traditional 8 Channel PWM Rx, but it also has a built-in 3 axis gyro and a 3 axis accelerometer sensor module. With the built-in sensors the Plus SR8 will compensate for outside forces on the aircraft and will enhance the stability of your model making it easier and smoother to fly with the push of a button. The Plus SR8 supports multiple flight modes, Auto-level, Stabilisation, Hover and Knife-Edge. Also and several configuration methods, including via LUA or the FrSky S.port Airlink+ combined with either the Freelink app or your computer.

In addition, the receiver supports full-range signal strength with dual detachable antennas to assure optimal antenna reception and maximum range. The Archer Plus SR8 can also be used as a primary receiver in a redundant setup by wiring the SBUS in port and connecting to any other FrSky receiver equipped with an SBUS out port.

With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup.

*Some features require the support of ACCESS and ETHOS.

** 4in1 / Multiprotocol – supported only with firmware 1.3.3.29 and above **

Features

• Enhanced Anti RF-Interference capability with more solid RF performance
• Smart-matched ACCESS & ACCST D16 modes
• Supports basic Black-Box function
• Built-in 3-axis gyroscope and 3-axis accelerometer sensor
• Multiple flight modes and configuration tools (ETHOS, LUA scripts, etc.)
• SBUS Out port (Supports 16CH / 24CH mode)
• SBUS In port (Supports Signal Redundancy)
• Full control range with telemetry (S.Port or FBUS)
• Over-The-Air (OTA) FW update
• External battery/device voltage detection
