150mm Cable Basket Double Tier Trapeze Bracket

150mm Cable Basket Double Tier Trapeze Bracket – Pre-Galvanised (PG)

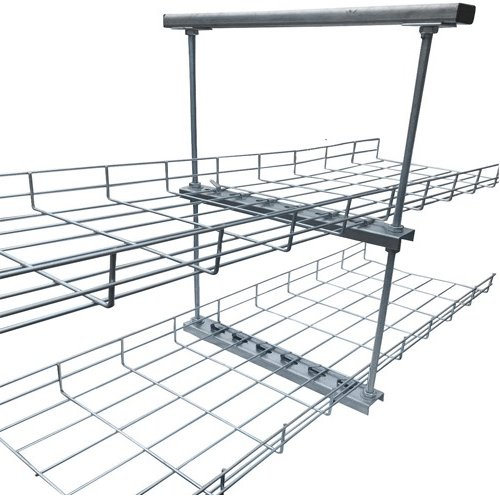

This 150mm cable basket double tier trapeze bracket is a complete, pre-assembled solution for supporting dual stacked wire baskets. Designed to reduce installation time and improve load distribution, it’s ideal for commercial and industrial containment applications.

The bracket supports two separate tiers of cable basket: Tier 1 at a 300mm drop and Tier 2 at a 600mm drop (from ceiling level). Built from heavy-duty pre-galvanised steel, it ensures long-lasting corrosion resistance and strength across demanding site conditions.

Compatible with all wire baskets featuring a 50mm spacing configuration. The system is secured by bending the built-in tabs over the basket wires—no additional fixing required.

🔧 Technical Specifications:

• Width Supported: Up to 150mm per basket
• Drop Heights: Tier 1 – 300mm / Tier 2 – 600mm
• Strut Channel: 2 x Heavy Duty Pre-Galvanised Sections
• Rod: M10 x 600mm Threaded Drop Rod
• Basket Fit: For 50mm wire spacing configurations
• Assembly: Fully prebuilt, tool-free ceiling fix

✔ Key Features:

• Supports double stacked cable baskets up to 150mm wide
• Dual level design – perfect for split containment systems
• PG finish ensures corrosion protection in service risers and plant rooms
• Quick ceiling mount with integrated tab-lock mechanism
• Reduces install time and on-site assembly requirements

🛠 Applications:

• Data centre cable routing
• Electrical and M&E containment systems
• Industrial wire basket installations
• Service risers and suspended ceiling infrastructure
