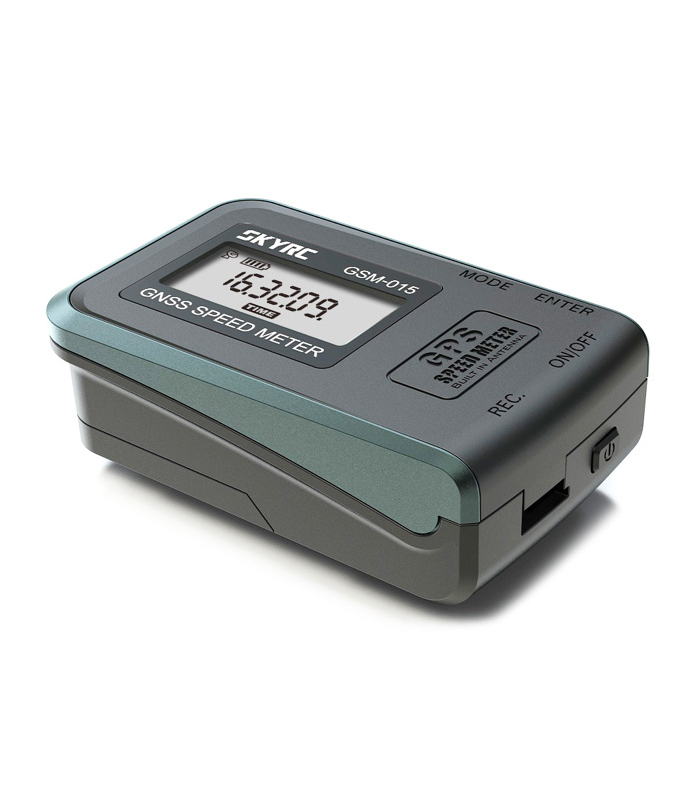

SkyRC High Precision Speed Meter GPS Track Logger

This is the new GSM-015 Version of SkyRc’s GPS Speed Meter. It now supports GLONASS as well as GPS so it will find even more satellites to lock onto for improved positional accuracy.

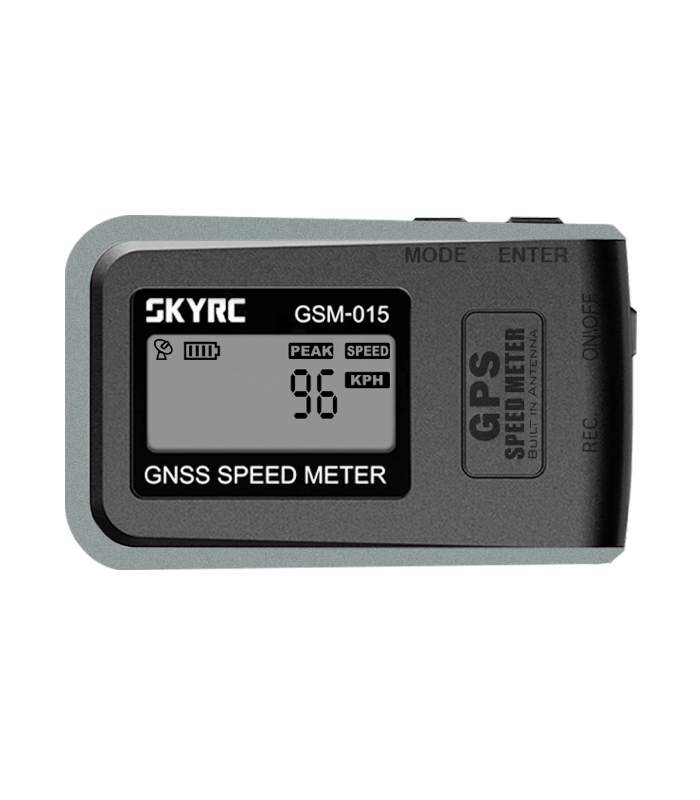

Have you ever wondered the top speed of your model, or how high you flew? Well this neat little gadget for SkyRc will tell you just that. It uses a high precision GPS module to record speed, position and altitude in real time. The LCD screen will display average, current, and peak speed, as well as current and max altitude, total distance, and GPS coordinates (longitude/latitude). The unit also has a data logging function so that you can record the key data as GPS track, which can then be overlaid on Goggle Earth. The device only weighs 45g so it can be used on most models and you don’t have to worry about providing power it either. It has its own internal USB rechargeable battery, which lasts for 150minutes.

Features

• Speed meter with top speed memory
• Track: Location, speed & altitude
• Compact and lightweight for almost any RC application
• Concurrent reception of GPS & GLONASS
• GNSS Coordinator
• Built-in 1M flash (recording time: 18 hours at 1Hz update frequency)
• UTC timestamp logged for each track point
• Built-in rechargeable, LiPo bettery 200mAh (Operating time: 150 minutes)
• Support for both Metric and Imperial system of measurements
• GNSS LOGGER software for data logging on Google Earth / Bing Maps
• Firmware upgradable

Software:

• GNSS LOGGER – Windows
• GNSS LOGGER – Mac
