Pixhawk LCD Display Screen

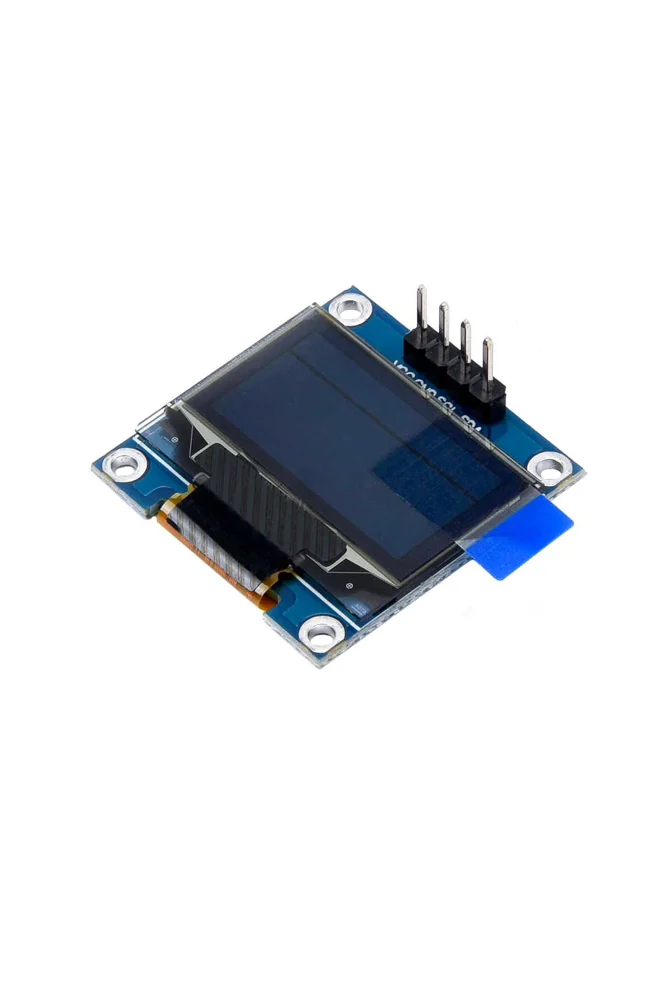

Forget needing to memorise LED status sequences and buzzer tones with this handy OLED display for the Pixhawk FC. It’s a small OLED display that can be used to display key information such as the selected flight mode, battery voltage, GPS info and error codes. It will make any setup immediately more user friendly.

How to install:

Support for the onboard display is included in Copter-3.5 (and higher).

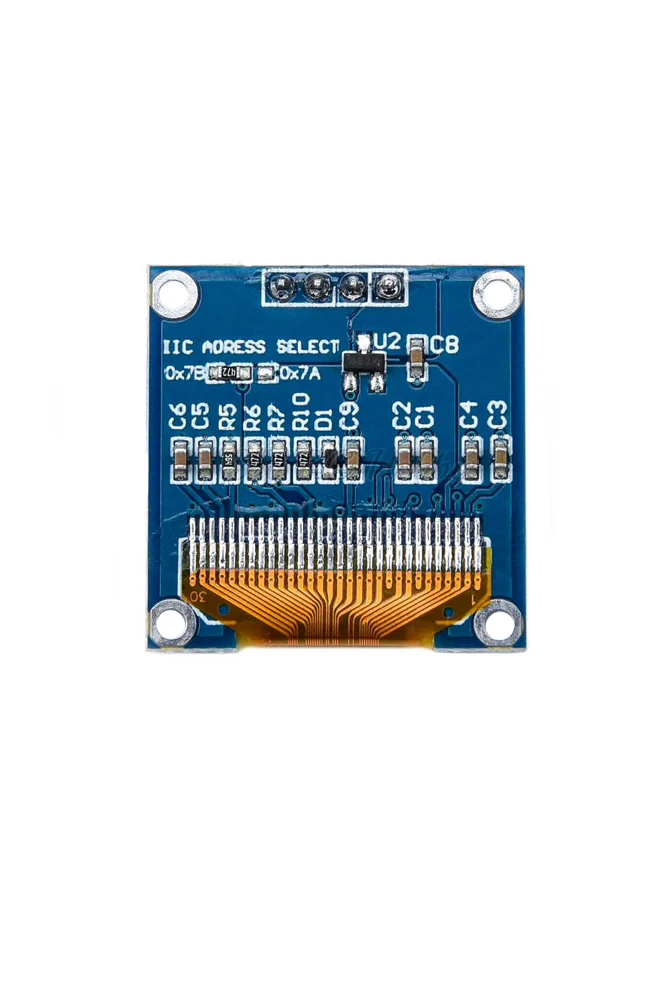

Connect the display to the autopilot’s I2C port as shown in the image above. If the I2C port is full, you can use an I2C Splitter here.

Using Mission Planner or equivalent ground station go to the parameter list and set NTF_DISPLAY_TYPE to 1

The following information will be displayed on the screen:

• Arming failure messages
• Flight mode
• Battery voltage
• GPS Lock and satellite count
• Pre-arm passed/failed
• EKF status

More Info Wiki
