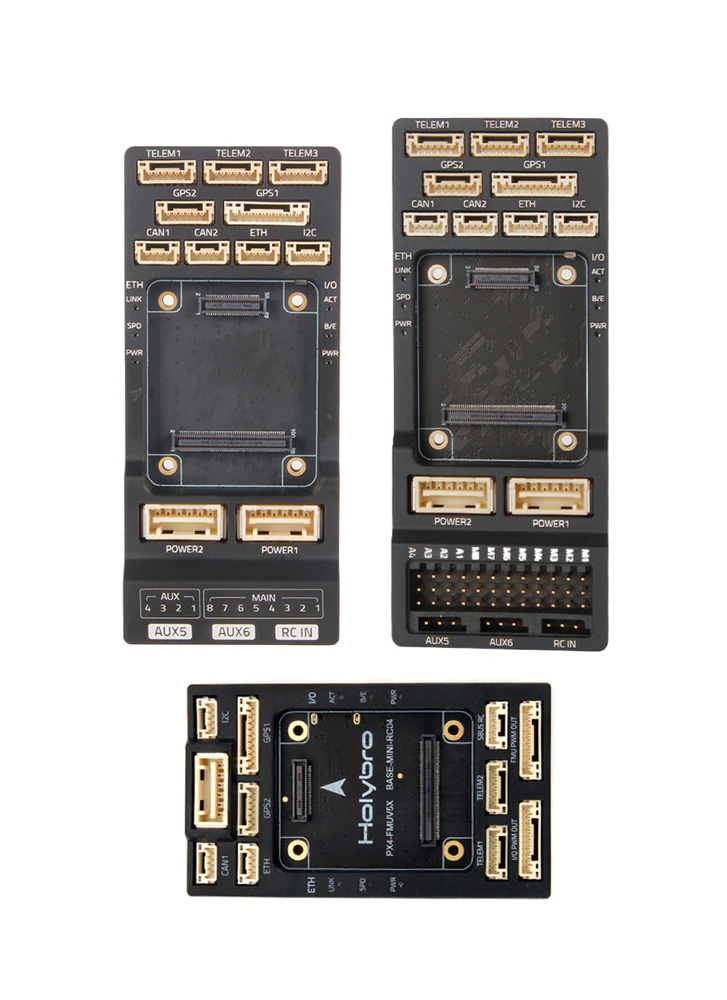

Holybro Pixhawk 6X / 6X V2 Base Board / Carrier Board

Holybro’s official carrier boards for the Pixhawk 6X, 5X and any flight controller that follow the Pixhawk Autopilot Bus Standard. These connect to the FC via a 100-pin & a 50-pin Pixhawk Autopilot Bus connector and they provides a range of connections via JST-GH sockets and a bank of 3P header pins.

Standard size and Mini versions – all sets include associated spare cable set: Holybro Spare Cable Set for Pixhawk 6X V2 /Holybro Spare Cable Set for Pixhawk 6X Mini Base

Options:

• 18062 Pixhawk Base – Discontinued – Ports Pinout can be found here
• 18117  for V2A Pixhawk Standard Ports – Pinout can be found here
• 18125 for V2B Pixhawk Standard Ports – Pinout can be found here
• 18074 Pixhawk Mini Base – Ports Pinout can be found here
